Mill-Max 3169-0-00-15-00-00-03-0 PCB Pins

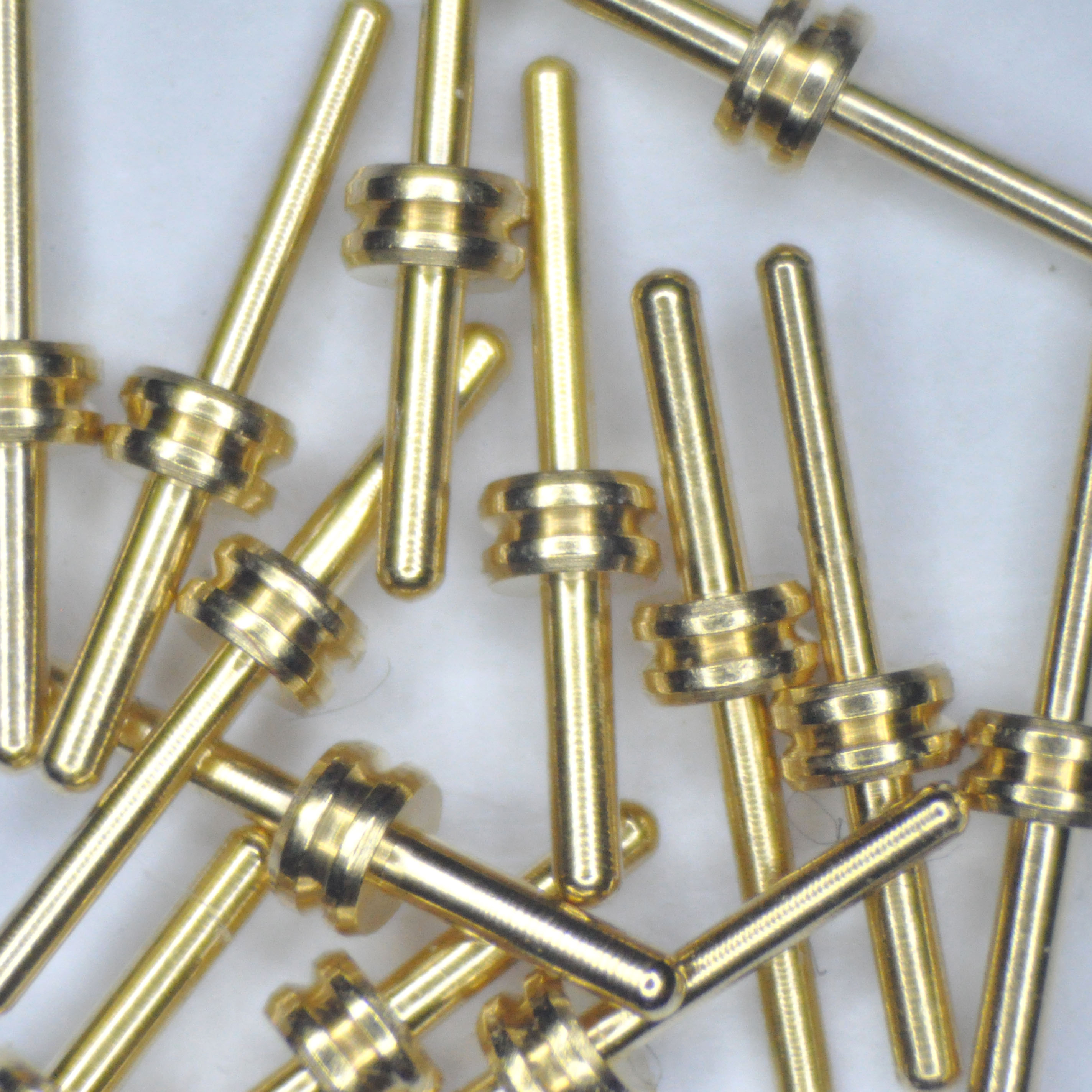

Mill-Max 3169-0-00-15-00-00-03-0 gold-plated PCB pins



These are brand-new Mill-Max 3169-0-00-15-00-00-03-0 gold-plated PCB pins. They have an 0.018″ diameter tail (the standard size for a DIP pin) an 0.056″ diameter middle section and an 0.022″ diameter head. These are the pins that are used in my HP reproduction 8601A hybrid modules (available here), but are also useful in a wide variety of applications. Download the Mill-Max catalog page for this product here.
